In industrial facilities, manufacturing plants, and logistics warehouses, concrete floors suffer severe damage over time from heavy forklift traffic, pallet friction, chemical spills, and heavy machinery vibration. Repairing deformed industrial floors with high-performance epoxy technology restores operational safety, streamlines logistics, and protects property value.

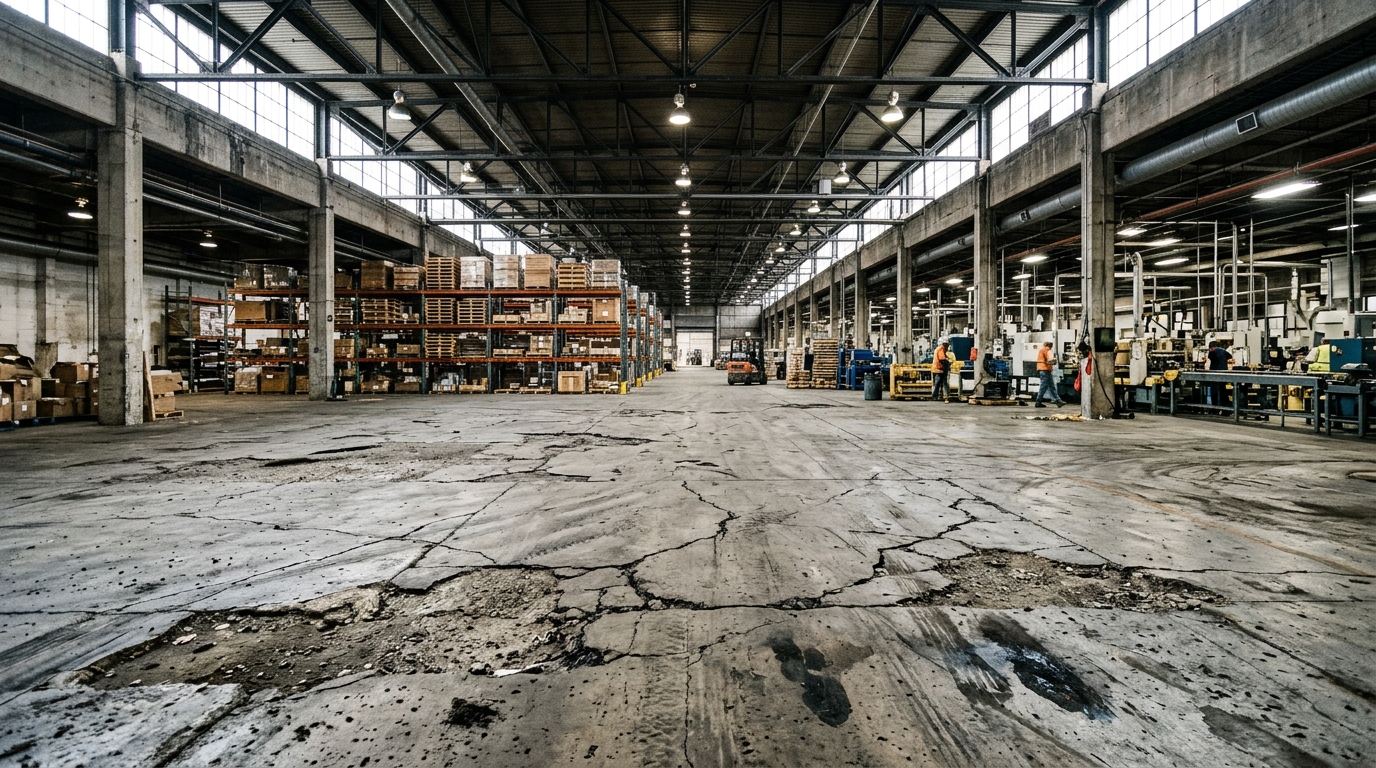

Factory Floor Deformation & Epoxy Transformation
Interactive Comparison
Interactive Slider: Drag the center divider left or right to inspect the real-time contrast between deformed factory concrete and the repaired seamless epoxy floor.
Why Is Industrial Floor Repair Critical?
Concrete deterioration in busy factory spaces is much more than a cosmetic defect; it directly impacts operational uptime and safety:
- Forklift and Pallet Jack Wheel Damage: Uneven cracks transmit severe shocks to forklift axles, increasing wheel wear fourfold and creating rollover hazards.
- Continuous Concrete Dusting: Deformed concrete continuously pulverizes into fine silica dust, harming sensitive machinery and contaminating finished goods.
- Subsurface Chemical Infiltration: Oil and corrosive chemicals seep into porous concrete, reaching steel rebar and causing catastrophic structural degradation.
- OSHA / OHS Workplace Hazards: Height discrepancies and pits create immediate tripping and workplace accident hazards for personnel.
Step-by-Step Epoxy Floor Restoration Process
EZ İnşaat executes industrial floor restorations utilizing world-class diamond grinding machinery and high-tensile epoxy polymer chemistries:
1 Substrate Assessment & Diagnosis
Schmidt rebound hammer testing for substrate strength, carbide moisture measurement (must be < 4%), and distinction between dynamic vs. static structural fissures.
2 Diamond Grinding & Shot Blasting
Heavy planetary diamond grinders remove laitance and contaminations. Micro-pores are opened to a CSP 3 profile, followed by HEPA industrial vacuum filtration.
3 V-Grooving & Epoxy Mortar Patching
Cracks and joint spalls are chased with diamond discs into a clean V-notch. High-modulus epoxy repair mortar and thixotropic paste are packed flush.
4 Deep-Penetrating Primer & Quartz Armor
Solvent-free epoxy primer deeply saturates the concrete matrix. Kiln-dried silica quartz is broadcast into the wet primer to build compressive resistance and intercoat lock.
5 Self-Leveling Epoxy Topcoat
High-build epoxy topcoat in desired RAL color (typically RAL 7035 light grey) is squeegeed and spike-rolled to release entrapped air, curing into a jointless mirror finish.
6 Demarcation & Safety Striping
Forklift travel corridors, pedestrian walkways, and fire exit routes are precisely marked with abrasion-resistant polyurethane safety coatings.
Comparison: Damaged Concrete vs. Restored Epoxy Floor
| Feature | Standard / Damaged Concrete | Restored Epoxy Coating |
|---|---|---|
| Dust Resistance | Continuous abrasive dusting, hard to sweep | 100% Dust-free, hygienic and easily washable |
| Mechanical Strength | Pits and crumbles under point shock loads | 70+ N/mm² compressive strength, built for heavy forklifts |
| Chemical Barrier | Porous: absorbs acids, oils, and petrochemicals | Total impermeable barrier against oils and industrial chemicals |
| Facility Aesthetics | Dull, stained, dark work environment | High-gloss light reflectance (+300%), bright and modern |
| Return to Service | Fresh concrete requires 28 days cure time | Pedestrian traffic in 24 hrs, full heavy forklift traffic in 72 hrs |
Request a Free Technical Site Inspection
Have our specialized industrial flooring engineers evaluate your plant floor, take moisture readings, and specify the most durable, cost-effective restoration plan.
